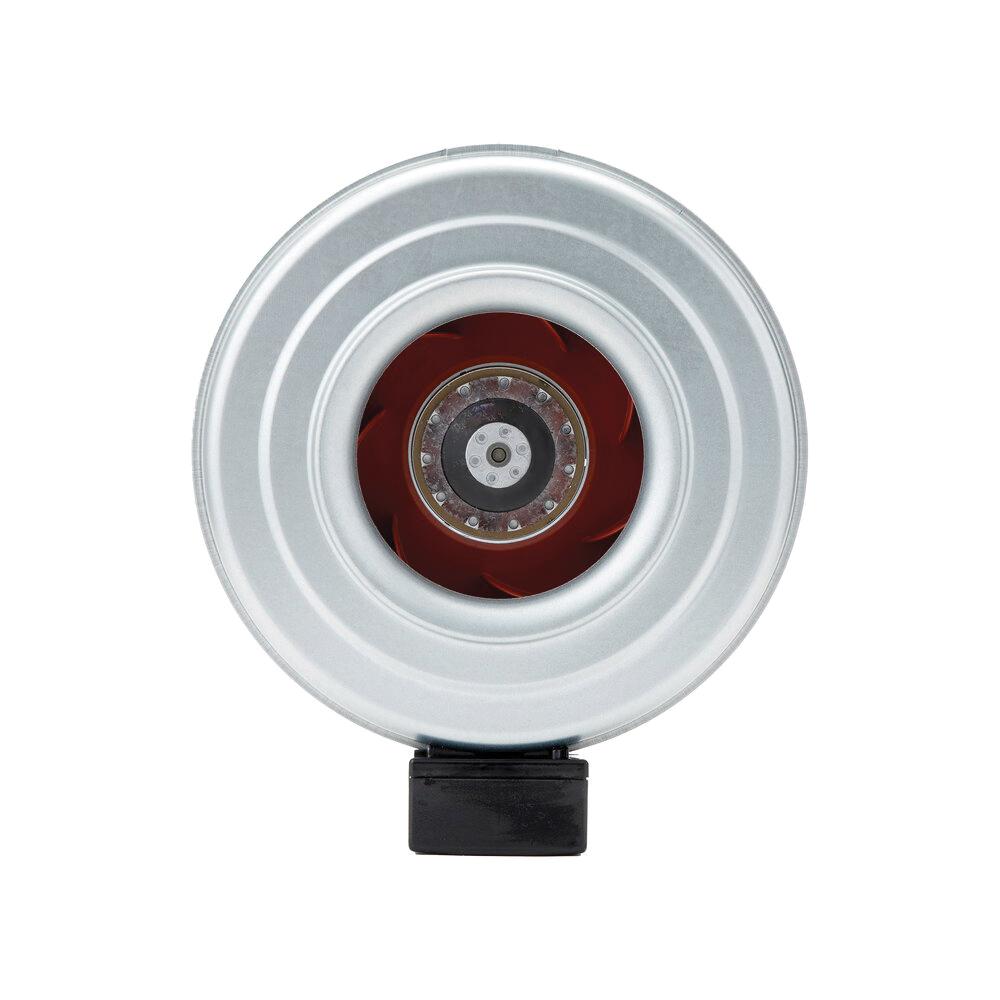

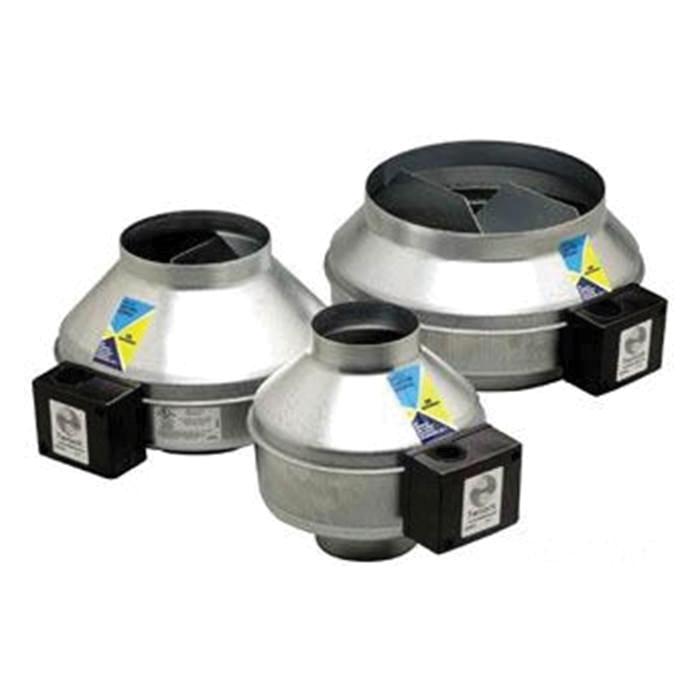

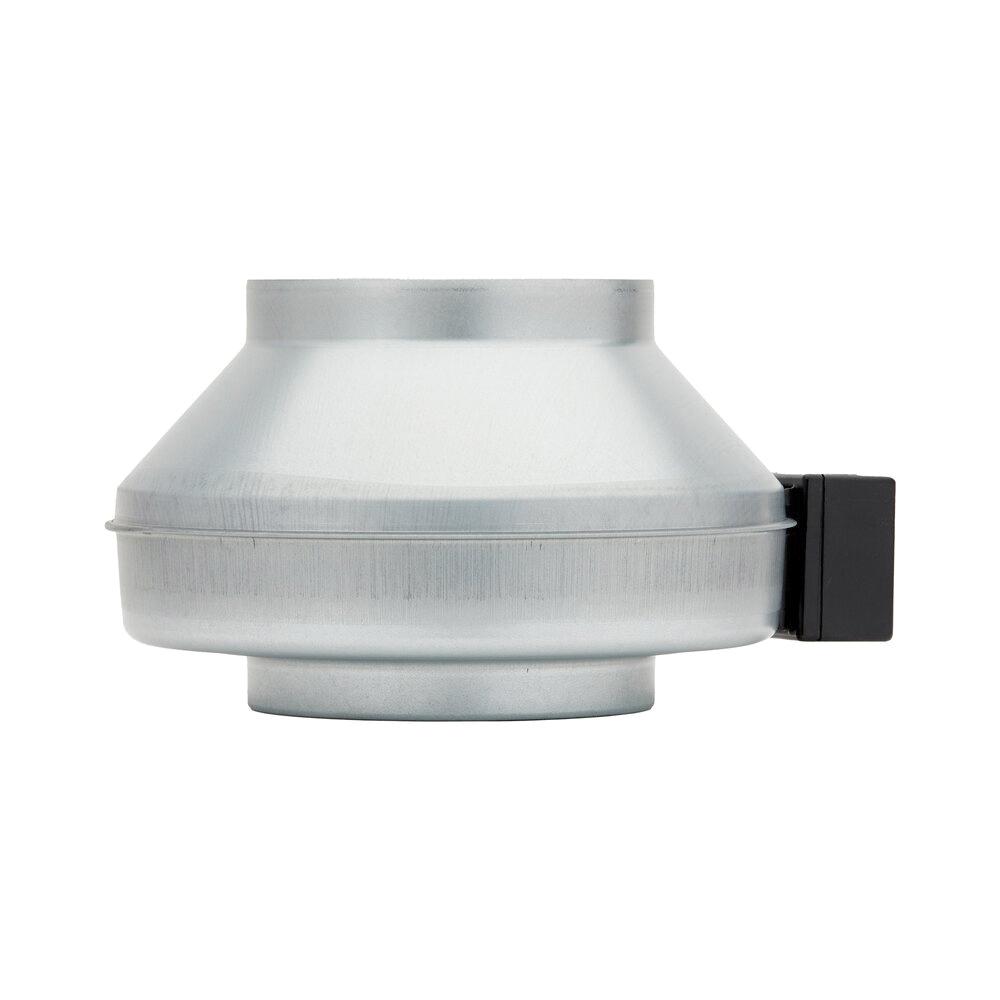

fantech® FG-8XL InlineDuctFan FG8XL

With the motor in the airstream, the fan provides constant dissipation of heat build-up that gives the fan first-in-class longevity and reliability backed by an industry leading warranty. The fan's motor bearings are permanently sealed and self-lubricating for maintenance-free life. The housing is manufactured from a two-piece stamped, galvanized construction. The unique, folded seam procedure by Fantech joins the two halves to give the fan a first-in-class, airtight seal. The airtight casing allows installation in duct connections and in wet room applications to be possible. Easy installation and reduced maintenance requirements ensure you stay within your budget and you finish your project on your time.

fantech® Multi-Purpose Centrifugal Inline Fan, FG/K Series, 1.32 A, 120 V, 60 Hz, 1 ph Phase, 137 W, 3031 rpm, 1 Speed, 509 cfm Flow Rate, 8 x 8 in Duct, 13-1/4 in Housing Diameter, 8 in Inlet, 8 in Outlet, Class B Motor, 509 cfm Air Flow Capacity, IP44 Enclosure, 22 ga Gauge, Insulation Class: Class B, 140 deg F, Metal, Finish: Galvanized, 8-1/8 in H, Additional Information: Circular Duct Connection
