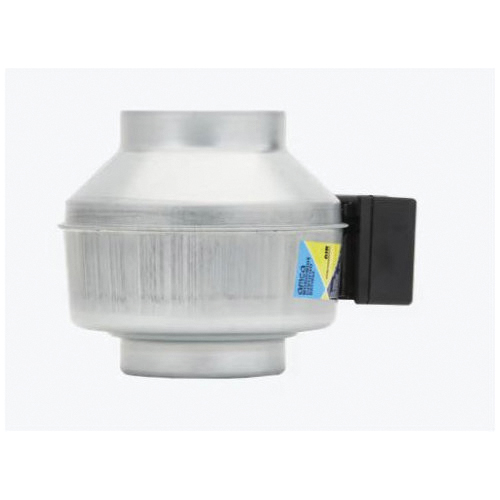

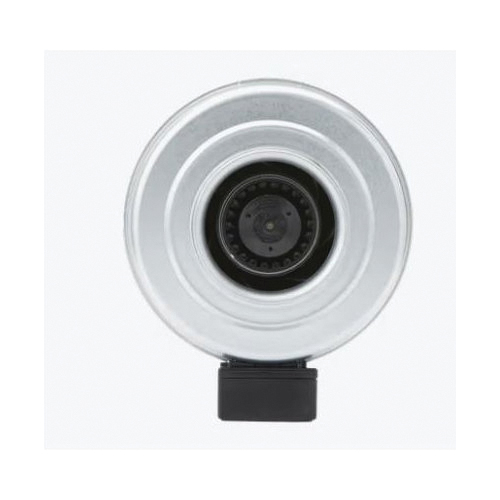

fantech® FG 5XL InlineDuctFan FG5XL
Brand: fantech® SKU: FG 5XL-
Price:
-
Local Stock:
Instruction/Installation Manual
fantech® In-Line Duct Fan, FG Series, 0.58 A, 120 V, 60 Hz, 1 ph, 79 W, 2463 rpm, 231 cfm Flow Rate, 5 in Duct, 9-3/4 in Housing Diameter, 5 in Inlet, 5 in Outlet, AC Motor, 220 cfm Air Flow Capacity, IP44 Enclosure, 1.01 in-WG, Insulation Class: Class B, 140 deg F, Metal, 9-3/4 in L x 5 in W x 6 in H
Air Flow Capacity
220 cfm
Amperage Rating
0.58 A
Correct Item Group
Exhaust Fans
Dimensions
9-3/4 in L x 5 in W x 6 in H
Duct Size
5 in
Enclosure Type
IP44
Flow Rate
231 cfm
Frequency Rating
60 Hz
Housing Diameter
9-3/4 in
Inlet Size
5 in
Insulation Class
Class B
Material
Metal
Motor Type
AC
Outlet Size
5 in
Phase
1 ph
Power Rating
79 W
Pressure Rating
1.01 in-WG
Series
FG Series
Speed Rating
2463 rpm
Temperature Rating
140 deg F
Voltage Rating
120 V
