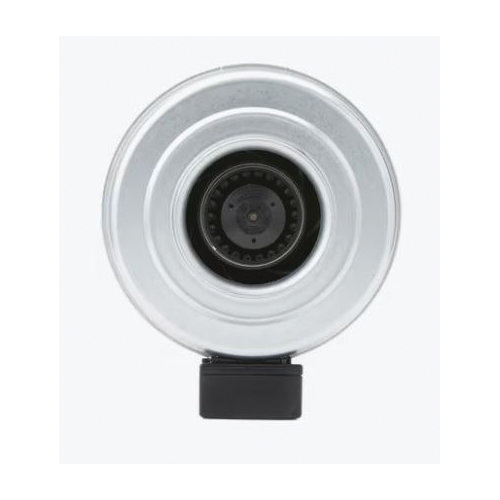

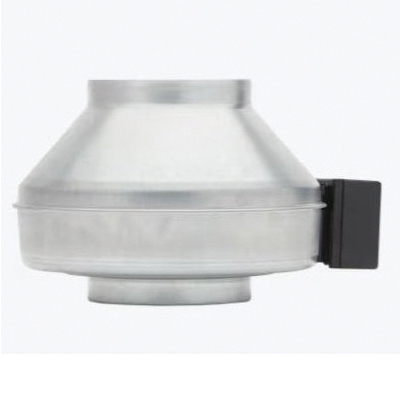

fantech® FG 6XL FG6XL
Brand: fantech® SKU: FG 6XL-
Price:
-
Local Stock:
Instruction/Installation Manual
fantech® In-Line Duct Fan, FG Series, 1.27 A, 120 V, 60 Hz, 1 ph, 148 W, 2932 rpm, 494 cfm Flow Rate, 6 in Duct, 13-1/8 in Housing Diameter, 6 in Inlet, 6 in Outlet, AC Motor, 485 cfm Air Flow Capacity, IP44 Enclosure, 1.36 in-WG, Insulation Class: Class B, 140 deg F, Metal, 13-1/8 in L x 6 in W x 7 in H
Air Flow Capacity
485 cfm
Amperage Rating
1.27 A
Correct Item Group
Exhaust Fans
Dimensions
13-1/8 in L x 6 in W x 7 in H
Duct Size
6 in
Enclosure Type
IP44
Flow Rate
494 cfm
Frequency Rating
60 Hz
Housing Diameter
13-1/8 in
Inlet Size
6 in
Insulation Class
Class B
Material
Metal
Motor Type
AC
Outlet Size
6 in
Phase
1 ph
Power Rating
148 W
Pressure Rating
1.36 in-WG
Series
FG Series
Speed Rating
2932 rpm
Temperature Rating
140 deg F
Voltage Rating
120 V
