fantech® 466333 ATMO300E-EC
  1. pin-int

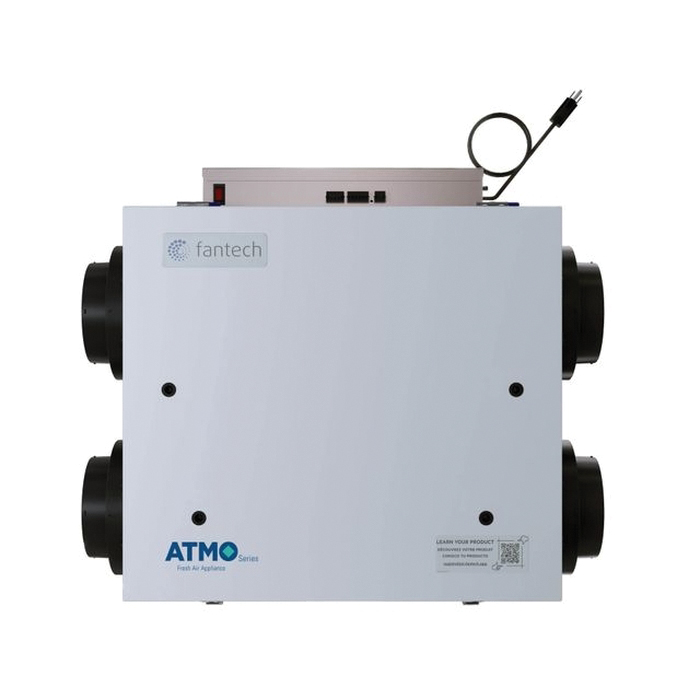

fantech® 466333 ATMO300E-EC

Brand: fantech® SKU: 466333
Manuals(2)
  • pdf Catalog https://assets.unilogcorp.com/267/ITEM/DOC/fantech_466333_Catalog.pdf
  • pdf Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/fantech_466333_Specification_Sheet.pdf

The ATMO residential HRVs and ERVs (heat and energy recovery ventilators) improve indoor air quality (IAQ) and help lower the project's HERS score.

fantech® Heat and Energy Recovery Ventilator, Model: ATMO 300E-EC, 80 to 300 cfm Air Flow Capacity, 6.4 A, 120 V, 1 ph Phase, 235 W, 6 in Duct, 80% Sensible Recovery Efficiency at 32 deg F, 68% Apparent Sensible Efficiency at 95 deg F Efficiency, 75 % Enthalpy Recovery Efficiency, Temperature Recovery Efficiency: 63 %, Horizontal Mounting, 23-7/8 in Length, 2-7/8 in Width, 16-15/16 in Height

Air Flow Capacity 80 to 300 cfm
Amperage Rating 6.4 A
Duct Size 6 in
Efficiency 80% Sensible Recovery Efficiency at 32 deg F, 68% Apparent Sen more...
Enthalpy Recovery Efficiency 75 %
Height 16-15/16 in
Length 23-7/8 in
Model ATMO 300E-EC
Mounting Type Horizontal
Phase 1 ph
Power Rating 235 W
Temperature Recovery Efficiency 63 %
Voltage Rating 120 V
Width 2-7/8 in
