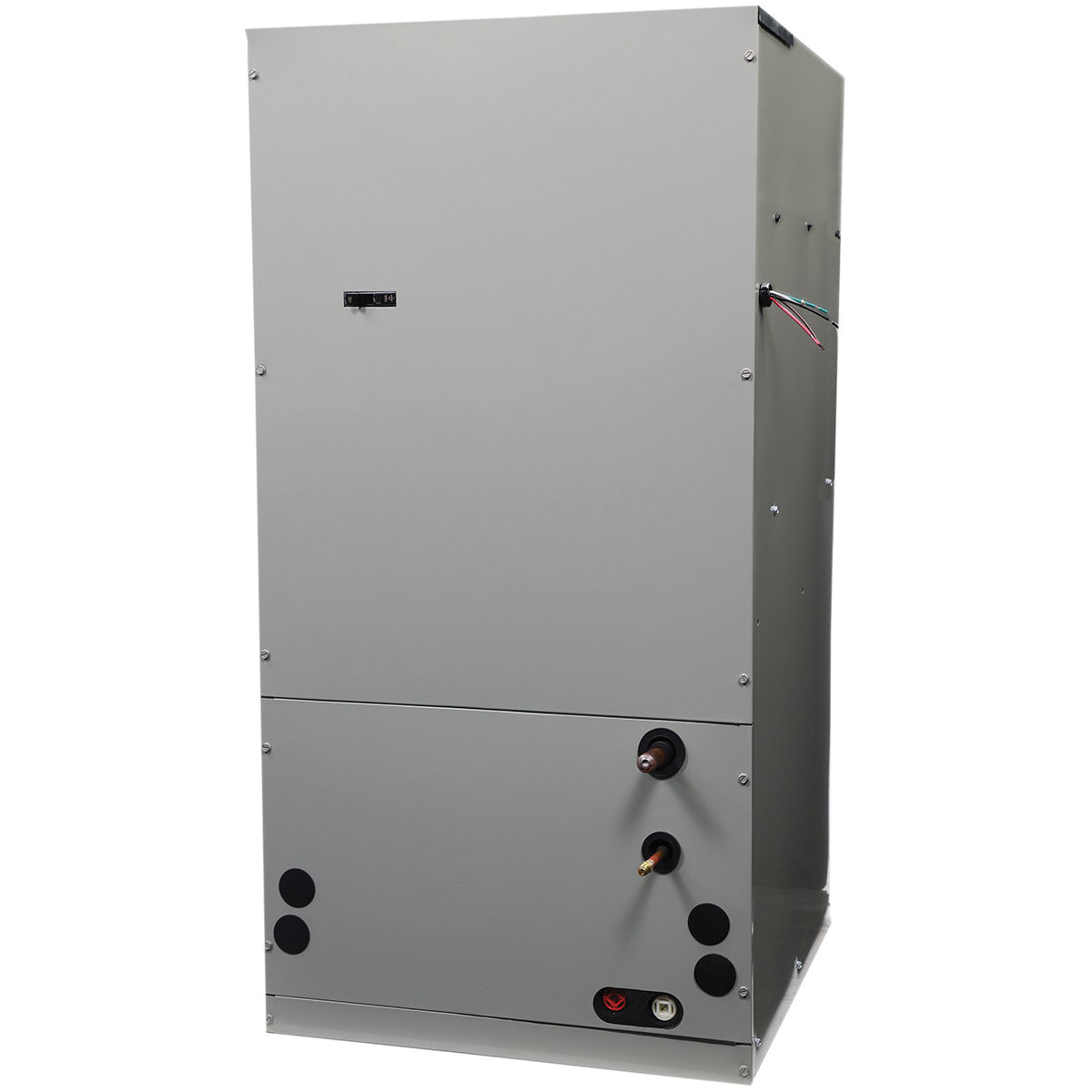

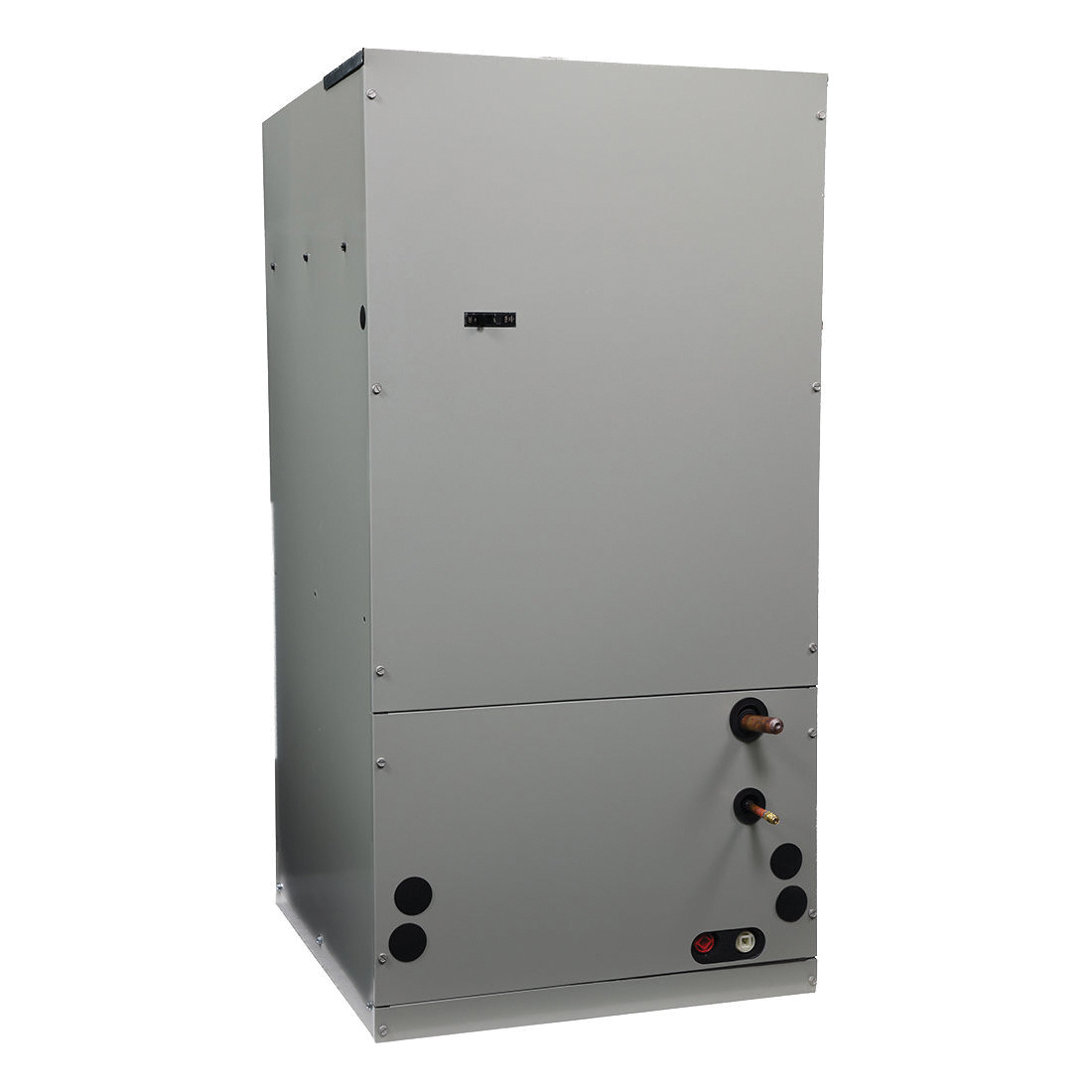

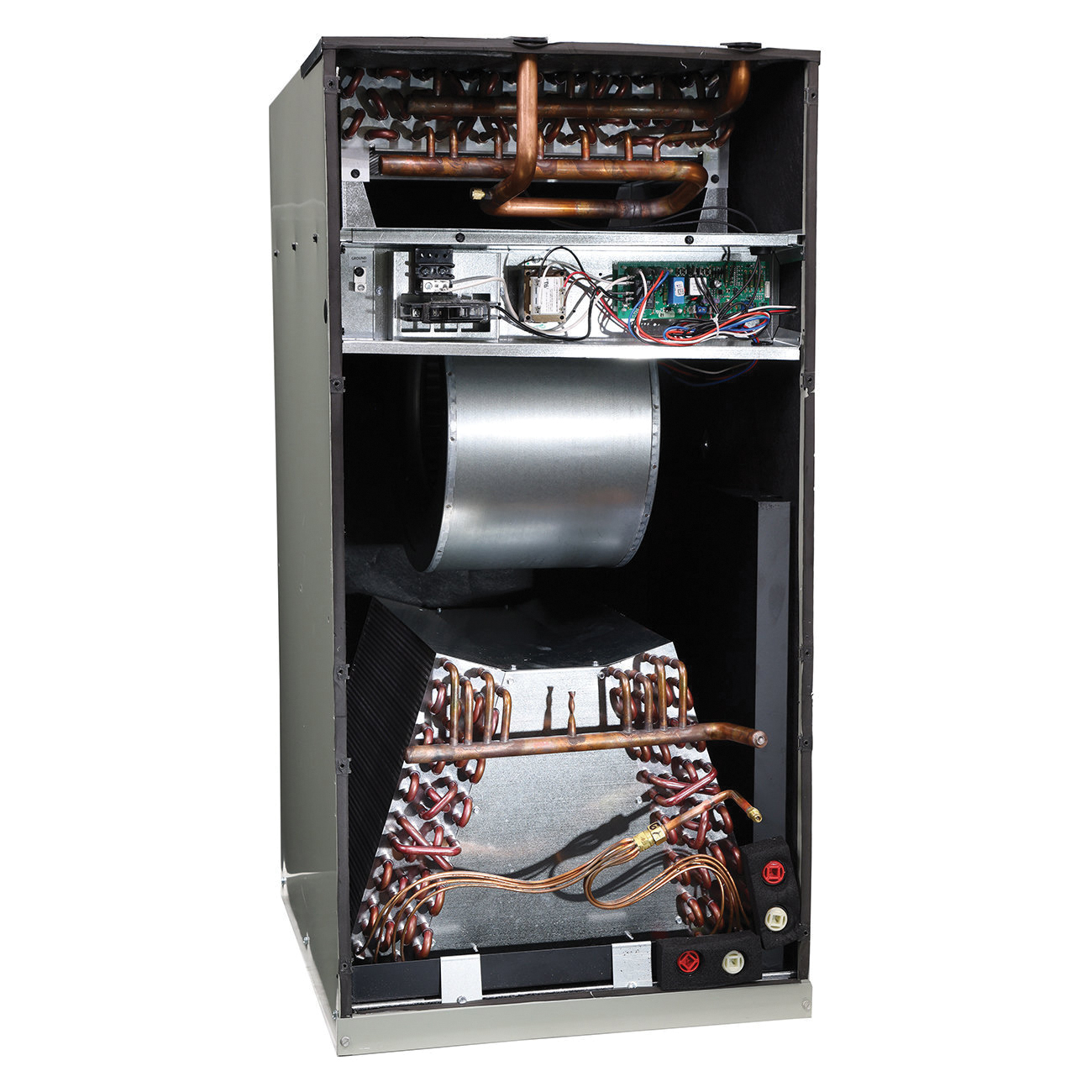

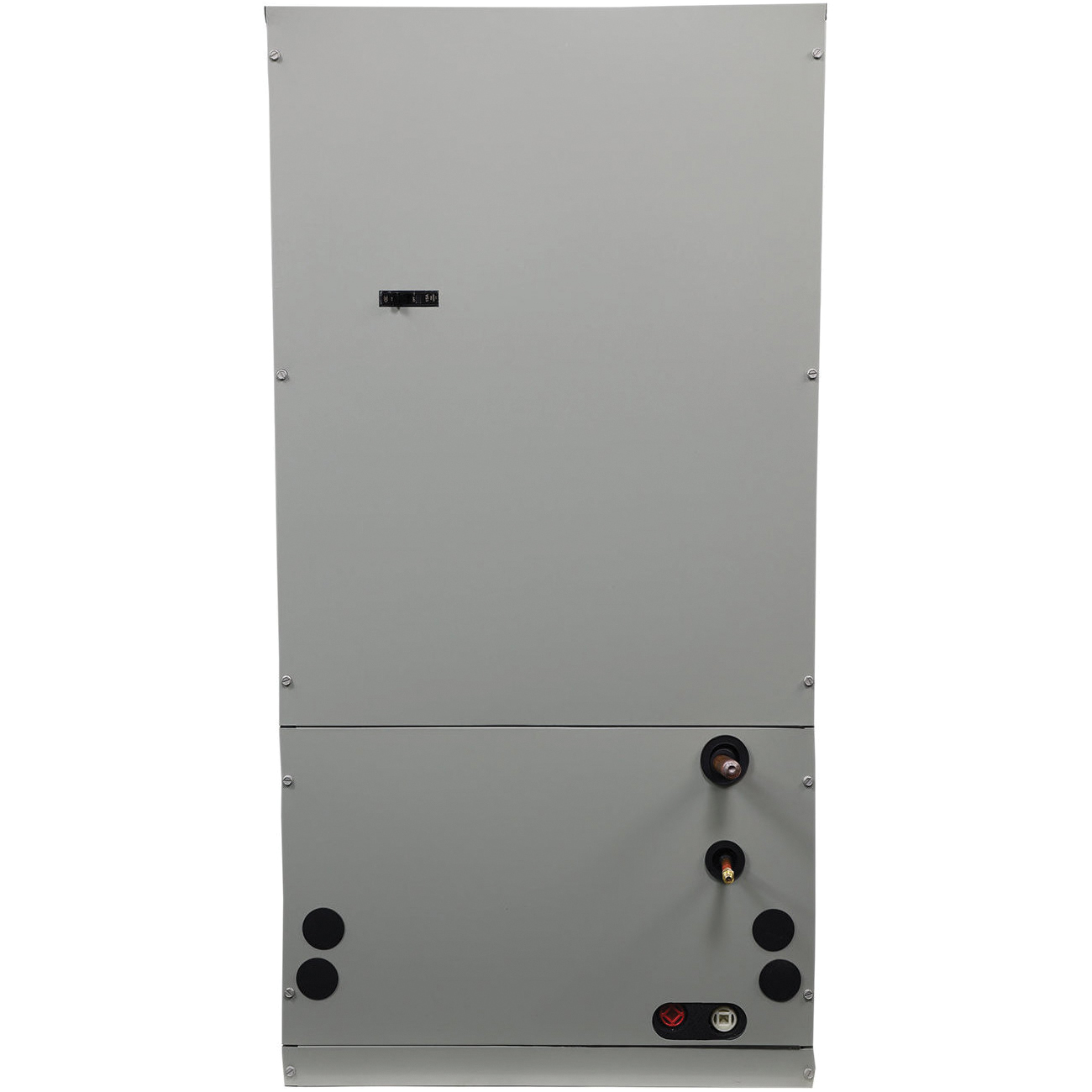

Aspen ABM48J-000-WC4LL ABM48J-000-WC4LL
Brand: Aspen SKU: ABM48J-000-WC4LL-
Price:
-
Local Stock:
Instruction/Installation Manual
Aspen Multi-Position Hydronic Air Handler, 120 V, 9.5 A, 12.66 A Minimum Circuit, 60 Hz, 1 ph Phase, 4 ton Nominal Capacity, Output BTU Rating: 48000 Btu/hr, 20 A Circuit Breaker, PSC Blower Motor, 3/4 hp Motor HP, 4 Hot Water Coil Rows, Copper Coil, Horizontal Right, Upflow, Electronic Control Board, Steel Housing, Galvanized Housing, 24-1/2 in Length, 20-1/2 in Width, 57 in Height, Additional Information: R-454B Refrigerant, Without Pump
Additional Information
R-454B Refrigerant, Without Pump
Amperage Rating
9.5 A
Blower Motor Type
PSC
Circuit Breaker Size
20 A
Coil Material
Copper
Configuration
Horizontal Right, Upflow
Control Board
Electronic
Frequency Rating
60 Hz
Height
57 in
Hot Water Coil Rows
4
Housing Finish
Galvanized
Housing Material
Steel
Length
24-1/2 in
Minimum Circuit Amperage
12.66 A
Motor HP Rating
3/4 hp
Nominal Capacity
4 ton
Output BTU Rating
48000 Btu/hr
Phase
1 ph
Voltage Rating
120 V
Width
20-1/2 in
