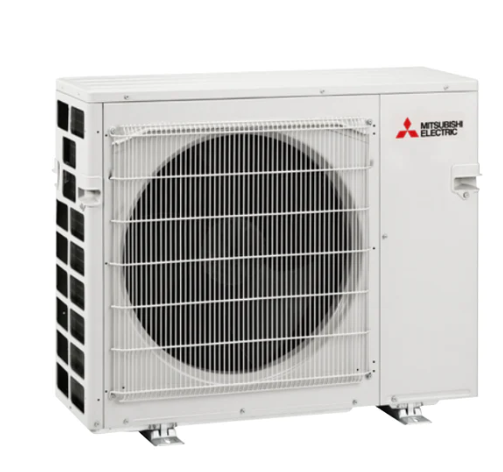

Mitsubishi Electric MXZ-SM60NL MXZ-SM60NL
Brand: Mitsubishi Electric SKU: MXZ-SM60NL-
Price:
-
Local Stock:
Instruction/Installation Manual
Mitsubishi Electric Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 5000 W Cooling, 4720 W Heating, 60 Hz, 1 ph, 54000 Btu/hr Heating, 60000 Btu/hr Cooling, 12 EER Rating, 20 SEER, 10.5 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 50 A Fuse Rating, Inverter Drive, 59 dBA Heating Sound Level, 58 dBA Cooling Sound Level, Finish: Munsell 3Y 7.8/1.1, -13 to 70 deg F Heating Operating Temperature, 23 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 41-11/32 in Overall Width, 52-11/16 in Overall Height
Compressor Type
Twin Rotary
Connection Type
Flared
Cooling BTU Rating
60000 Btu/hr
Cooling Operating Temperature
23 to 115 deg F
Cooling Sound Level
58 dBA
Drive Type
Inverter
EER Rating
12
Finish
Munsell 3Y 7.8/1.1
Frequency Rating
60 Hz
Fuse Rating
50 A
HSPF Rating
10.5
Heating BTU Rating
54000 Btu/hr
Heating Operating Temperature
-13 to 70 deg F
Heating Sound Level
59 dBA
Liquid Line Size
3/8 in
Model
MXZ
Overall Height
52-11/16 in
Overall Length
13 in
Overall Width
41-11/32 in
Phase
1 ph
Power Rating
5000 W Cooling, 4720 W Heating
Refrigerant Type
R-454B
SEER Rating
20
Suction Line Size
3/4 in
Voltage Rating
208/230 V
