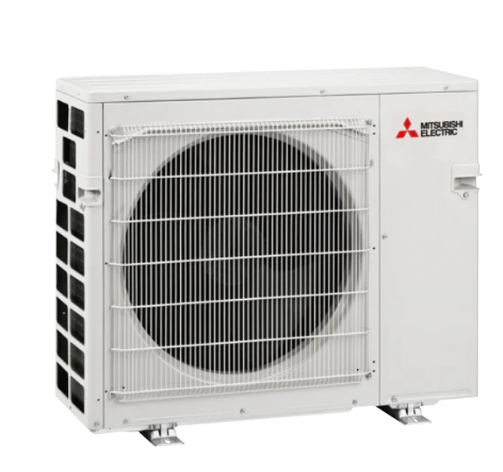

Mitsubishi Electric MXZ-3D24NL MXZ-3D24NL
Brand: Mitsubishi Electric SKU: MXZ-3D24NL-
Price:
-
Local Stock:
Instruction/Installation Manual
Mitsubishi Electric Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 1.74 A, 1605 W Cooling, 1704 W Heating, 60 Hz, 1 ph, 25000 Btu/hr Heating, 22000 Btu/hr Cooling, 2228 cfm Heating CFM Rating, 2119 cfm Cooling CFM Rating, 13.7 EER Rating, 20 SEER, 10 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, Inverter Drive, 55 dBA Heating Sound Level, 51 dBA Cooling Sound Level, Finish: Munsell 3Y 7.8/1.1, 6 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 37-11/32 in Overall Width, 31-11/32 in Overall Height, 3-Zone
Additional Information
3-Zone
Amperage Rating
1.74 A
Compressor Type
Twin Rotary
Connection Type
Flared
Cooling BTU Rating
22000 Btu/hr
Cooling CFM Rating
2119 cfm
Cooling Operating Temperature
14 to 115 deg F
Cooling Sound Level
51 dBA
Drive Type
Inverter
EER Rating
13.7
Finish
Munsell 3Y 7.8/1.1
Frequency Rating
60 Hz
HSPF Rating
10
Heating BTU Rating
25000 Btu/hr
Heating CFM Rating
2228 cfm
Heating Operating Temperature
6 to 75 deg F
Heating Sound Level
55 dBA
Liquid Line Size
1/4 in
Model
MXZ
Overall Height
31-11/32 in
Overall Length
13 in
Overall Width
37-11/32 in
Phase
1 ph
Power Rating
1605 W Cooling, 1704 W Heating
Refrigerant Type
R-454B
SEER Rating
20
Suction Line Size
1/2 in, 3/8 in
Voltage Rating
208/230 V
