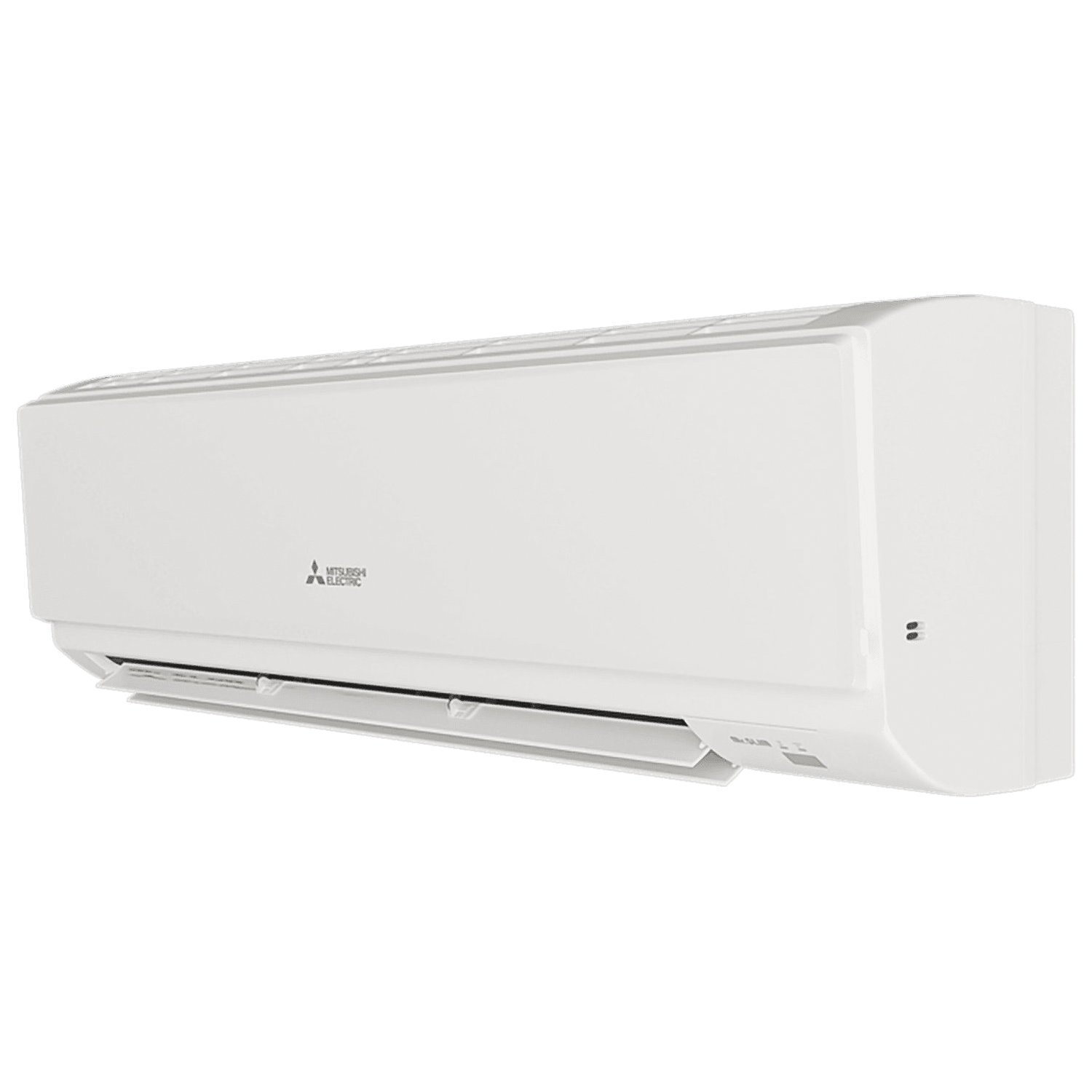

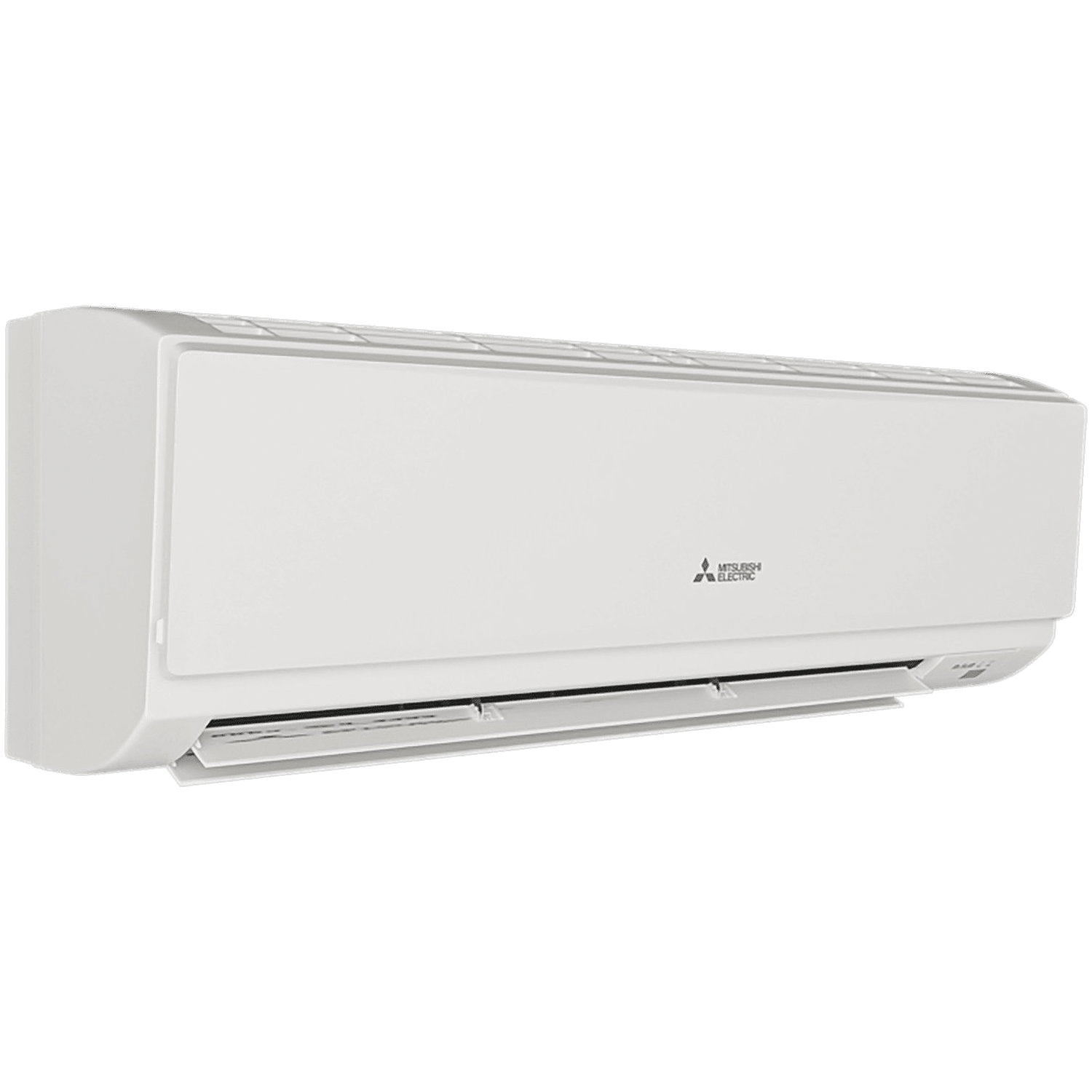

Mitsubishi Electric Trane® PKFY-L18NLMU-A PKFY-L18NLMU-A
  1. pin-int

Mitsubishi Electric Trane® PKFY-L18NLMU-A PKFY-L18NLMU-A

Brand: Mitsubishi Electric Trane® SKU: PKFY-L18NLMU-A
Manuals(3)
  • pdf Owners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/MitsubishiElectricTrane_PKFYL06NLMUA_Owners_User_Manual.pdf
  • pdf Service Manual https://assets.unilogcorp.com/267/ITEM/DOC/MitsubishiElectricTrane_PKFYL06NLMUA_Service_Manual.pdf
  • pdf Submittal https://assets.unilogcorp.com/267/ITEM/DOC/MitsubishiElectricTrane_PKFYL18NLMUA_Submittal.pdf

The PKFY Wall-mounted Indoor Unit is commercial-grade and available in a wide range of capacities, making it a versatile comfort solution. It features a sleek design, automatic horizontal vanes, a swing airflow mode, and quiet operation. The PKFY is an ideal solution for retrofit and supplemental conditioning applications.

Mitsubishi Electric Trane® Indoor Unit, City Multi Series, Model: PKFY-L, 208-230 V, 0.24 A, 0.05 kW, 0.04 kW, 60 Hz, 1 ph Phase, 18000 Btu/hr Cooling, 20000 Btu/hr Heating, 438 cfm, Connection Type: Flared, 15 A Fuse Rating, 46 dBA Sound Level, Wall Mounting, Plastic, 35-3/8 in Overall Length, 9-11/32 in Overall Width, 11-25/32 in Overall Height, Additional Information: R-454B Refrigerant

Additional Information R-454B Refrigerant
Amperage Rating 0.24 A
BTU Rating 18000 Btu/hr Cooling, 20000 Btu/hr Heating
CFM Rating 438 cfm
Connection Type Flared
Frequency Rating 60 Hz
Fuse Rating 15 A
Material Plastic
Model PKFY-L
Mounting Type Wall
Overall Height 11-25/32 in
Overall Length 35-3/8 in
Overall Width 9-11/32 in
Phase 1 ph
Power Rating 0.05 kW, 0.04 kW
Series City Multi Series
Sound Level 46 dBA
Voltage Rating 208-230 V
