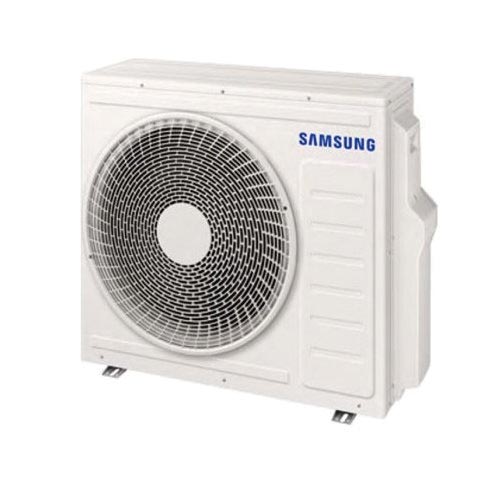

Samsung AJ020DXJ2CG/AA JXG20J2D
  1. pin-int

Samsung AJ020DXJ2CG/AA JXG20J2D

Brand: Samsung SKU: AJ020DXJ2CG/AA
Manuals(4)

Samsung Standard Condensing Outdoor Unit, FJM Series, 208 to 230 V, 6.3 A Cooling, 7.5 A Heating, 125 W, 60 Hz, 1 ph, 22000 Btu/hr Heating, 18000 Btu/hr Cooling, 1678 cfm Heating CFM Rating, 1678 cfm Cooling CFM Rating, 11.7 Ducted, 12.2 Mixed, 12.7 Non-Ducted EER Rating, 18 Ducted, 19 Mixed, 20 Non-Ducted SEER, 8.6 Ducted, 8.8 Mixed, 9 Non-Ducted HSPF, BLDC Inverter Driven Twin Rotary Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, 25 A Fuse Rating, Inverter Drive, Tonnage: 1.5 ton, 51 dBA Heating Sound Level, 48 dBA Cooling Sound Level, Steel, Galvanized/Powder-Coated, 5 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 12-3/16 in Overall Length, 34-5/8 in Overall Width, 31-7/16 in Overall Height

Amperage Rating 6.3 A Cooling, 7.5 A Heating
BTU Rating 20000 Btu/hr
CFM Rating 1678 cfm
Compressor Type BLDC Inverter Driven Twin Rotary
Connection Type Flared
Cooling BTU Rating 18000 Btu/hr
Cooling CFM Rating 1678 cfm
Cooling Operating Temperature 14 to 115 deg F
Cooling Sound Level 48 dBA
Correct Item Group Multi Zone Outdoor Units
Dimensions 31-7/16 in H x 34-5/8 in W x 12-3/16 in D
Drive Type Inverter
EER Rating 11.7 Ducted, 12.2 Mixed, 12.7 Non-Ducted
Fan Rating 1.2 A
Finish Galvanized/Powder-Coated
Frequency Rating 60 Hz
Fuse Rating 25 A
HSPF Rating 8.6 Ducted, 8.8 Mixed, 9 Non-Ducted
Heating BTU Rating 22000 Btu/hr
Heating CFM Rating 1678 cfm
Heating Operating Temperature 5 to 75 deg F
Heating Sound Level 51 dBA
Liquid Line Size 1/4 in
Material Steel
Overall Height 31-7/16 in
Overall Length 12-3/16 in
Overall Width 34-5/8 in
Phase 1 ph
Power Rating 125 W
Refrigerant Type R-32
SEER Rating 18 Ducted, 19 Mixed, 20 Non-Ducted
Series FJM Series
Sound Level 51 dBA
Suction Line Size 1/2 in, 3/8 in
Temperature Rating 14 to 115 deg F
Tonnage 1.5 ton
Vent, Ducted or Ductless Ductless
Voltage Rating 208 to 230 V
