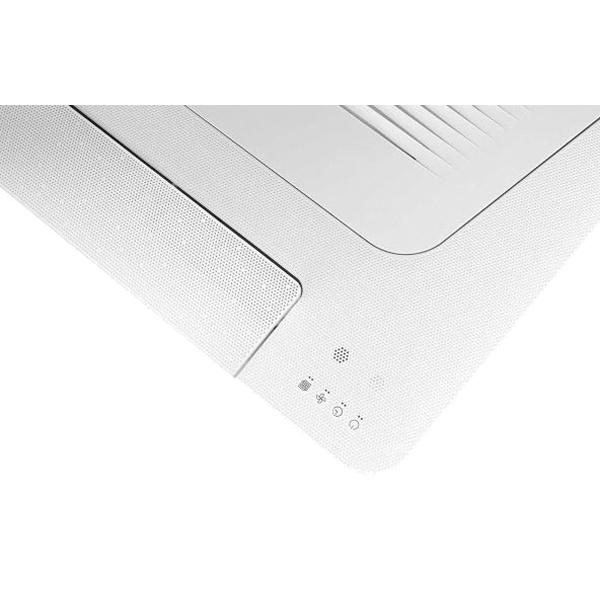

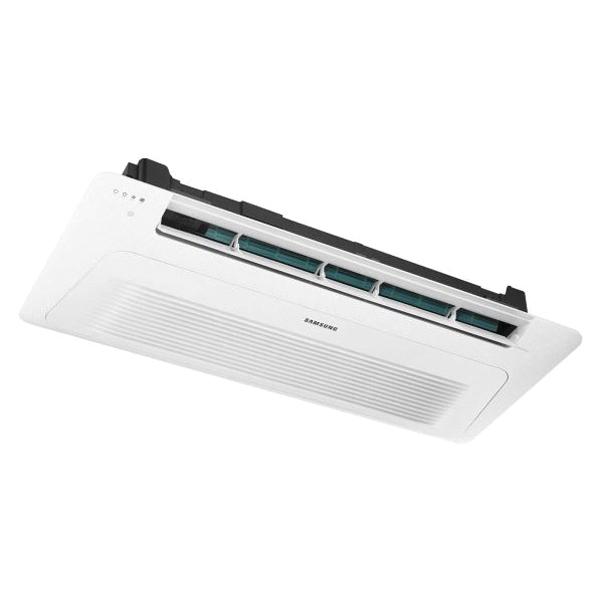

Samsung WindFree™ one-way cassette uses thousands of micro holes to distribute air throughout the space without blowing directly on the occupants. You can activate WindFree™ cooling by pressing the WindFree™ button on the controller.
Samsung Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 10.9 A, 40 W Condenser, 27 W Evaporator, 60 Hz, 1 ph, 9000 Btu/hr Cooling, 12000 Btu/hr Heating, 1060 cfm Condenser, 258 cfm Evaporator CFM Rating, 13.4 EER, 22.1 SEER, HSPF: 8.3, Flared Connection Type, R-410A, Inverter Drive, 32 dBA, Cassette Mount, HIPS, 61 to 90 deg F Cooling, <=86 deg F Heating, 16-1/8 in Overall Length, 38-3/16 in Overall Width, 5-5/16 in Overall Height, Additional Information: Twin BLDC Rotary Compressor, Single Zone
Additional InformationTwin BLDC Rotary Compressor, Single Zone
Temperature Rating61 to 90 deg F Cooling, <=86 deg F Heating
Voltage Rating208 to 230 V
The indoor unit shall feature WindFree™ mode, in cooling mode, as room temperature nears set temperature, the unit will close its louver and will disperse air into the space through thousands of micro holes on the front of the indoor unit preventing cold air drafts on occupants
The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire
High voltage terminal block temperature sensor to disable unit in the event of power connection overheating
Auto restart after power loss
Soft start compressor minimizing current inrush
Base pan heater equipped as standard
All heat exchangers shall be mechanically bonded aluminum fin to copper tube
The condensing unit heat exchanger salt spray test method ISO 9227 the heat exchanger showed no unusual rust or corrosion development to 500 hr
Integral condensate pump with maximum 29 in lift from bottom of the unit with check valve and float switch to disable unit in the event of condensate overflow
Instruction/Installation Manual
