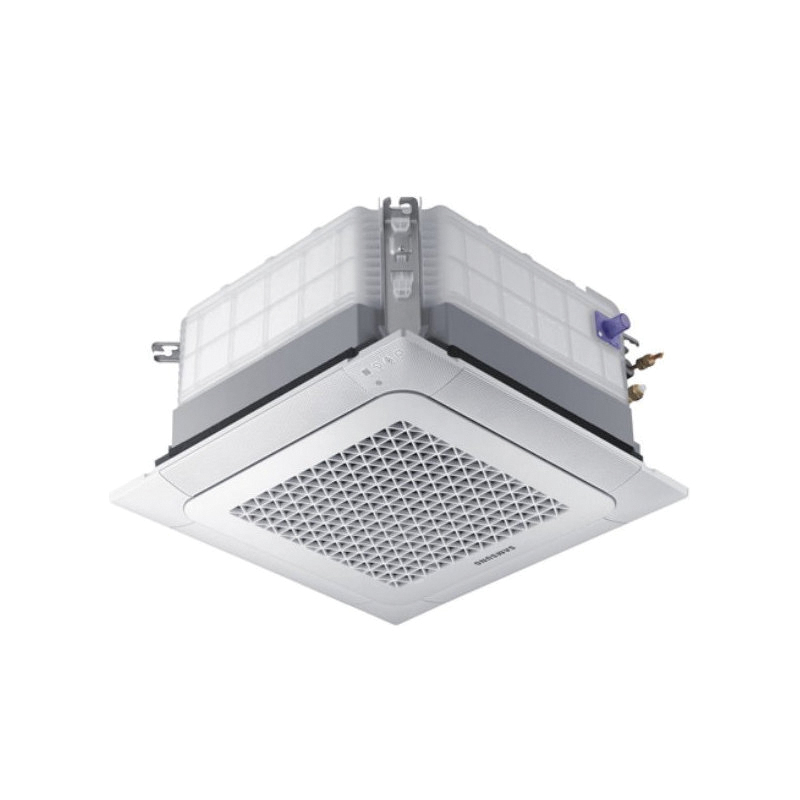

Samsung AC012DNNDCG/AA CNG12NDD
Brand: Samsung SKU: AC012DNNDCG/AA-
Price:
-
Local Stock:
Catalog
Samsung 4-Way Mini Cassette Indoor Unit, 208 to 230 V, 0.3 A, 1.48 kW Cooling, 1.8 kW Heating, 60 Hz, 1 ph, 3 Fan Speeds, 12000 Btu/hr Cooling, 14000 Btu/hr Heating, 226 to 325 cfm, 3.69 EER Rating, 22 SEER, 10.4 HSPF, Connection Type: Flared, 3/8 x 1/4 in Connection, R-32 Refrigerant, Tonnage: 1 ton, 34 dBA Sound Level, HIPS/Polypropylene, 64 to 90 deg F Cooling, 86 deg F Heating, 22-5/8 in Overall Length, 22-5/8 in Overall Width, 9-13/16 in Overall Height, For Use With: Multi-Zone Systems, Additional Information: 3/8 in Gas Pipe Size, 1/4 in Liquid Pipe Size, 24-3/8 in L x 24-3/8 in W x 2-3/8 in H Fascia Panel
Additional Information
3/8 in Gas Pipe Size, 1/4 in Liquid Pipe Size, 24-3/8 in L x 2 more...
Amperage Rating
0.3 A
BTU Rating
12000 Btu/hr Cooling, 14000 Btu/hr Heating
CFM Rating
226 to 325 cfm
Connection Size
3/8 x 1/4 in
Connection Type
Flared
Correct Item Group
Other Mini Split Indoor
EER Rating
3.69
Frequency Rating
60 Hz
HSPF Rating
10.4
Material
HIPS/Polypropylene
Number of Fan Speeds
3
Overall Height
9-13/16 in
Overall Length
22-5/8 in
Overall Width
22-5/8 in
Phase
1 ph
Power Rating
1.48 kW Cooling, 1.8 kW Heating
Refrigerant Type
R-32
SEER Rating
22
Sound Level
34 dBA
Suitable For Use With
Multi-Zone Systems
Temperature Rating
64 to 90 deg F Cooling, 86 deg F Heating
Tonnage
1 ton
Voltage Rating
208 to 230 V
