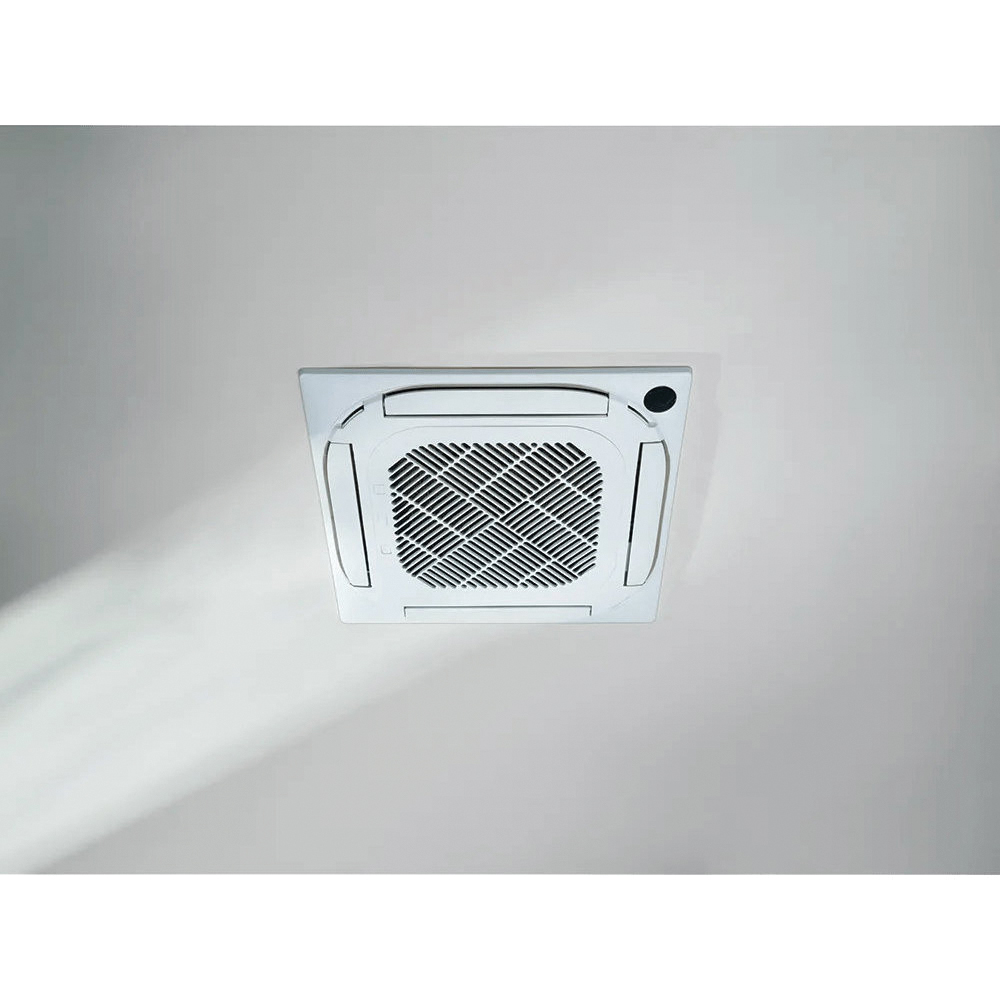

Experience a balance of performance and practicality with the Carrier Performance Series Cassette Indoor Unit. Designed to blend seamlessly into overhead spaces, this system delivers quiet, energy-efficient comfort to complement any new or remodeled space. Compatible with both single and multi-zone ductless systems, it features a temperature-sensing handheld remote and adjustable fan speeds for a tailored comfort experience.
Carrier® Ductless Cassette Indoor Unit, Performance™ Series, Model: 45MBCAQ, 208-230 V, 3 A, 46 W, 0.06 hp, 60 Hz, 1 ph Phase, 7 Fan Speeds, 12000 Btu/hr, 364.92 cfm, Connection Type: Flared, 1/4 in, 1/2 in Connection, R-454B Refrigerant, 15 A Fuse Rating, Direct Drive, Tonnage: 1 ton, 43.5 dBA Sound Level, Ceiling Mounting, Steel, Zinc-Coated, 22.44 in Overall Length, 22.44 in Overall Width, 9.65 in Overall Height
Amperage Rating3 A
BTU Rating12000 Btu/hr
CFM Rating364.92 cfm
Connection Size1/4 in, 1/2 in
Connection TypeFlared
Drive TypeDirect
FinishZinc-Coated
Frequency Rating60 Hz
Fuse Rating15 A
HP Rating0.06 hp
MaterialSteel
Model45MBCAQ
Mounting TypeCeiling
Number of Fan Speeds7
Overall Height9.65 in
Overall Length22.44 in
Overall Width22.44 in
Phase1 ph
Power Rating46 W
Refrigerant TypeR-454B
SeriesPerformance™ Series
Sound Level43.5 dBA
Tonnage1 ton
Voltage Rating208-230 V
When paired with select outdoor units, the system delivers enhanced energy efficiency, helping provide both cost savings and a smaller environmental footprint. ENERGY STAR® certified on select sizes.
Enjoy four fan-speed options and precise temperature control that help provide a consistently comfortable home environment with minimal temperature fluctuations. Additional features include Follow Me functionality, air direction control, and four fan speeds.
No ducts, no problem. This unit installs easily, eliminating the need for ceiling tearing, patches, or repainting.
Compatible with a variety of single and multi-zone systems, this unit provides flexible cooling and heating tailored to your needs.
With sound levels as low as 23.5 decibels, this unit helps provide a peaceful atmosphere, even during operation.
Compatible with Puron Advance™ refrigerant, which reduces global warming potential by 75% compared to traditional options, while maintaining non-ozone-depleting properties.
Experience peace of mind with Carrier's Consumer Choice Warranty. Upon timely registration, on eligible equipment select either a 10-year parts only limited warranty or a 5-year parts, plus a 3-year labor limited warranty.
