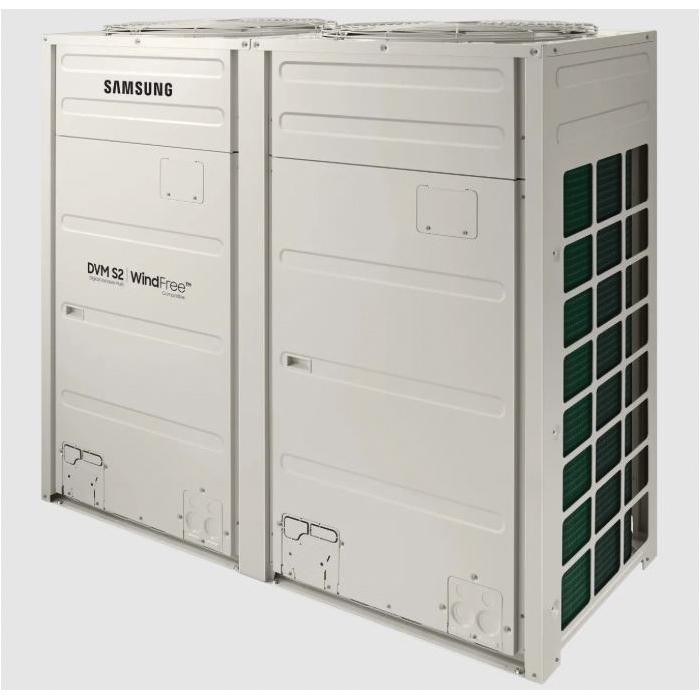

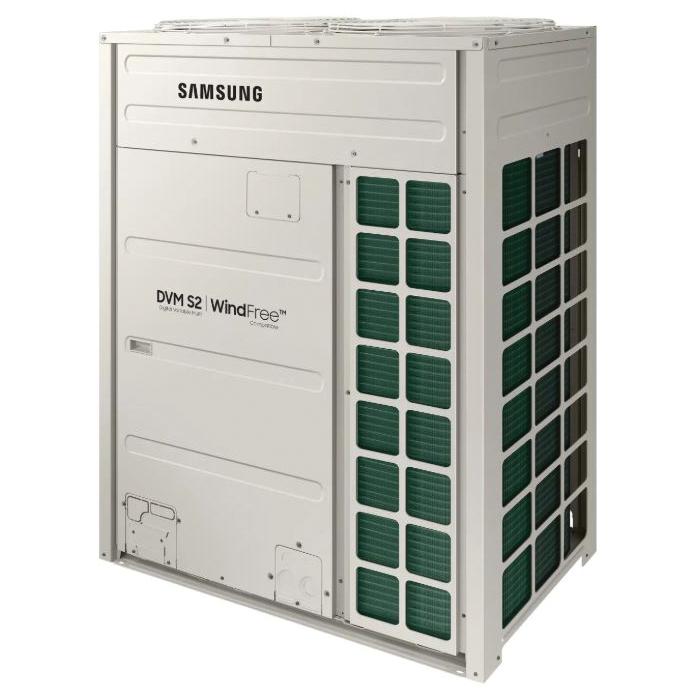

Samsung AM168BXVGJH/AA AM168BXVGJH/AA
  1. pin-int

Samsung AM168BXVGJH/AA AM168BXVGJH/AA

Brand: Samsung SKU: AM168BXVGJH/AA
Manuals(3)
  • pdf Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AM072BXVGJR_AA_Instruction_Installation_Manual.pdf
  • pdf Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AM096BXVGFH_AA_Specification_Sheet.pdf
  • pdf Submittal https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AM168BXVGJH_AA_Submittal.pdf

Samsung Heat Pump Condensing Unit, DVM S2 Model, 460 V Voltage Rating, 18.6/19.4 A Amperage Rating, 13.8 kW Cooling, 14.4 kW Heating Power Rating, 60 Hz Frequency Rating, 3 ph Phase, 168000 Btu/hr Cooling, 189000 Btu/hr Heating BTU Rating, 10665 cfm Rating, 11.1, 10.6, 10.1 EER Rating, 23.3, 24.35, 25.4 IEER Rating, (2) Inverter Scroll Compressor Type, R-410A Refrigerant Type, 5/8 in Liquid Line Size, 1-1/8 in Suction Line Size, 14 ton Tonnage, 60 dBA Sound Level, Steel, Galvanized Powder-Coated, 5 to 122 deg F Cooling, -22 to 75 deg F Heating Temperature Rating, 66-3/4 in H x 51 in W x 30-1/8 in D Dimensions

Amperage Rating 18.6/19.4 A
BTU Rating 168000 Btu/hr Cooling, 189000 Btu/hr Heating
CFM Rating 10665 cfm
Compressor Type (2) Inverter Scroll
Dimensions 66-3/4 in H x 51 in W x 30-1/8 in D
EER Rating 11.1, 10.6, 10.1
Finish Galvanized Powder-Coated
Frequency Rating 60 Hz
IEER Rating 23.3, 24.35, 25.4
Liquid Line Size 5/8 in
Material Steel
Model DVM S2
Phase 3 ph
Power Rating 13.8 kW Cooling, 14.4 kW Heating
Refrigerant Type R-410A
Sound Level 60 dBA
Suction Line Size 1-1/8 in
Temperature Rating 5 to 122 deg F Cooling, -22 to 75 deg F Heating
Tonnage 14 ton
Voltage Rating 460 V
